Equipment

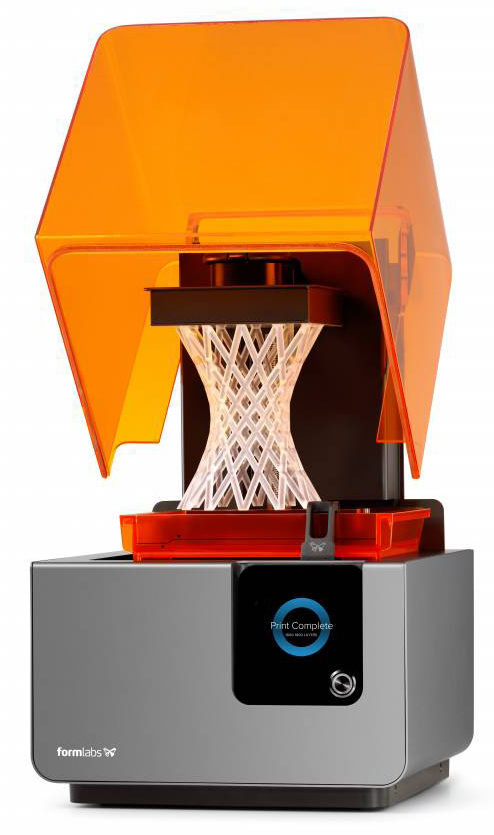

SLA printer
- Model Form 2 from Formlab
- Build Volume : 145 x 145 x 175 mm
- Laser Spot Size: 140 microns
- Layer Height: 25 – 100 microns
- Files Required: STL, OBJ
- Materials check the wiki (here)

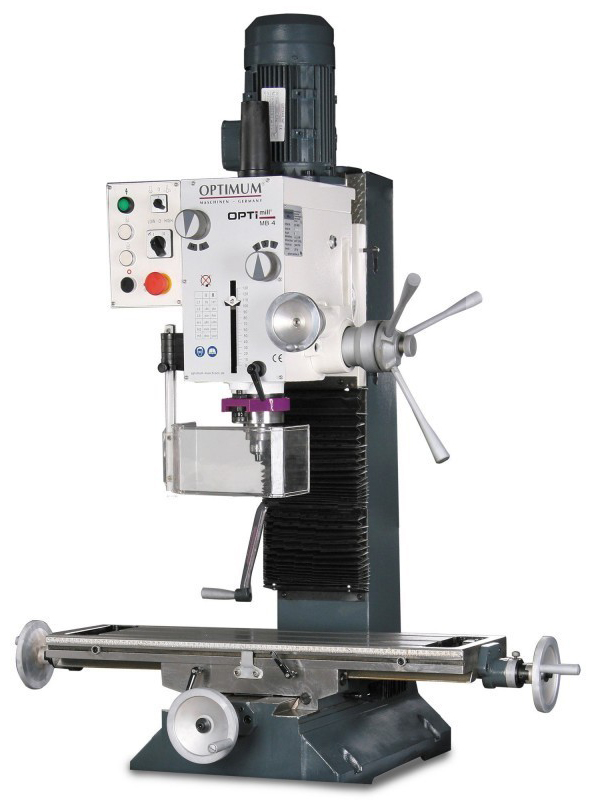

Milling machine
- Model Optimill MB4 from Optimachines
- Maximum drilling 28 mm
- Maximum spindle stroke 120 mm
- Speed from 95 to 3200 rpm
- Table size 800 x 240 mm

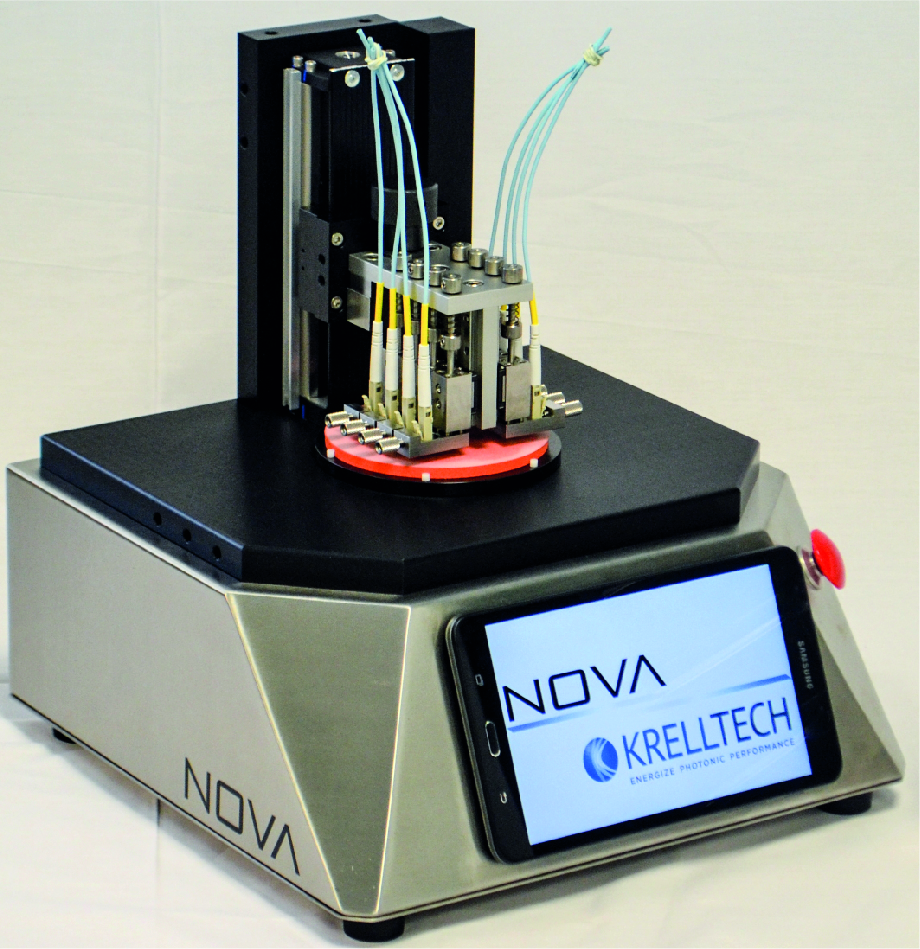

Optical Polishing
- Model nova from Krelltech
- Angle Repeatability +/-0.3 degrees
- All industry-standard connectors
- Up to 8 components
- Protrusion/undercut 50nm to -120 nm
- Back reflection < -60 dB, UPC
- Adjustable polish angle from 0 to 45 °

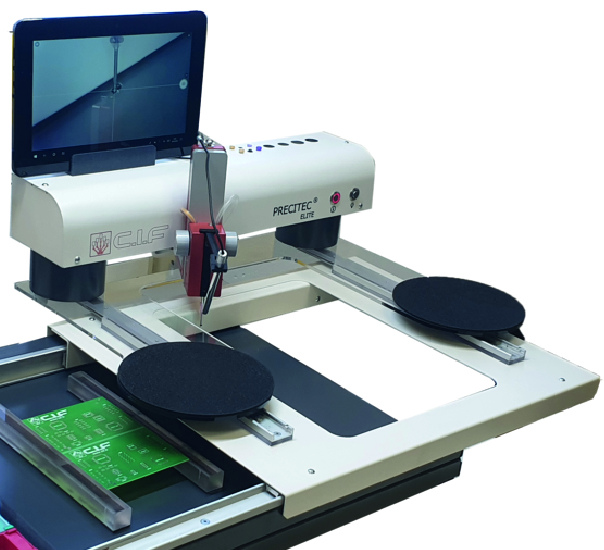

SMD Pick and Place
- Model PRECITEC ELITE from C.I.F
- Working surface 300*500mm
- For right and left-handed
- Up to 900 components per hour

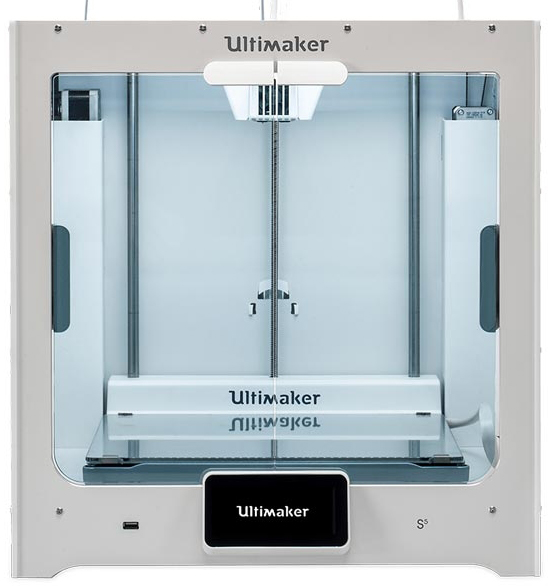

FDM printer
- model S5 from Ultimaker
- Volume : 215 x 215 x 300 mm
- Layer resolution : 0.4 mm nozzle : 200 – 20 µm
- XYZ resolution : 12.5, 12.5, 2.5 micron
- Print head: Dual extrusion print head
- Wire diameter: 2.85 mm
- Files Required: STL, OBJ
- Materials: PLA

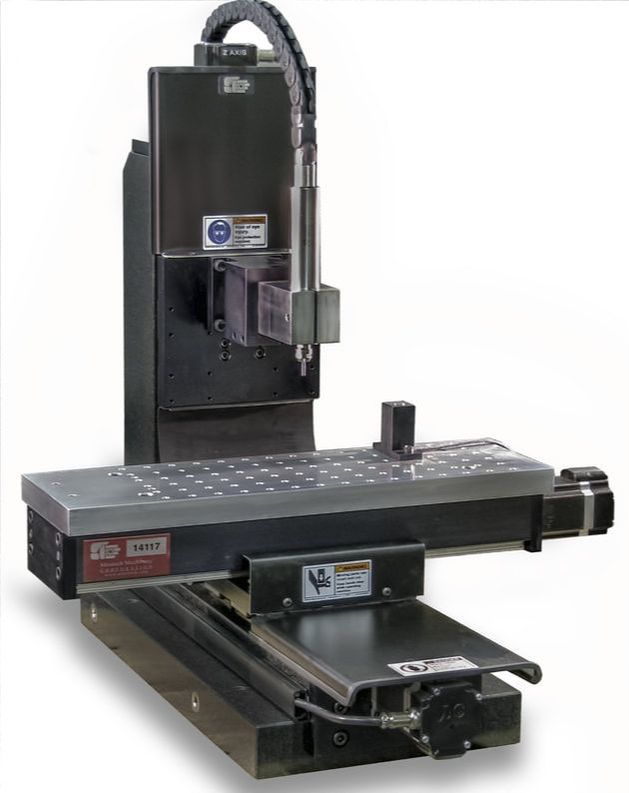

CNC machine
- Model Mini-mill/GX 3 axis from Minitech
- Shank diameter 4mm
- Spindle Nakanishi EM3060 / NR-3060S
- Simple speed 60 000 rpm
- Table-top Size 508mm x 152.4mm
- Feed-rates 0.1 to 1,200 mm per minute
- Minimum commanded movement 100 nm
- Tools diameter from 100 nm to 1 mm
- Materials non-ferrous metals and plastics

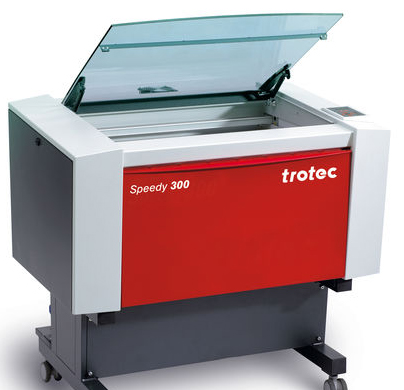

Laser Cutter/Engraver
- Model Speedy 300 from Trotec
- Laser Co2 30W
- Working surface 726 x 432 mm
- Maximum speed of 3.55 m/s
- Spot diameter 100 um
- Materials acrylic, plywood, paper, etc

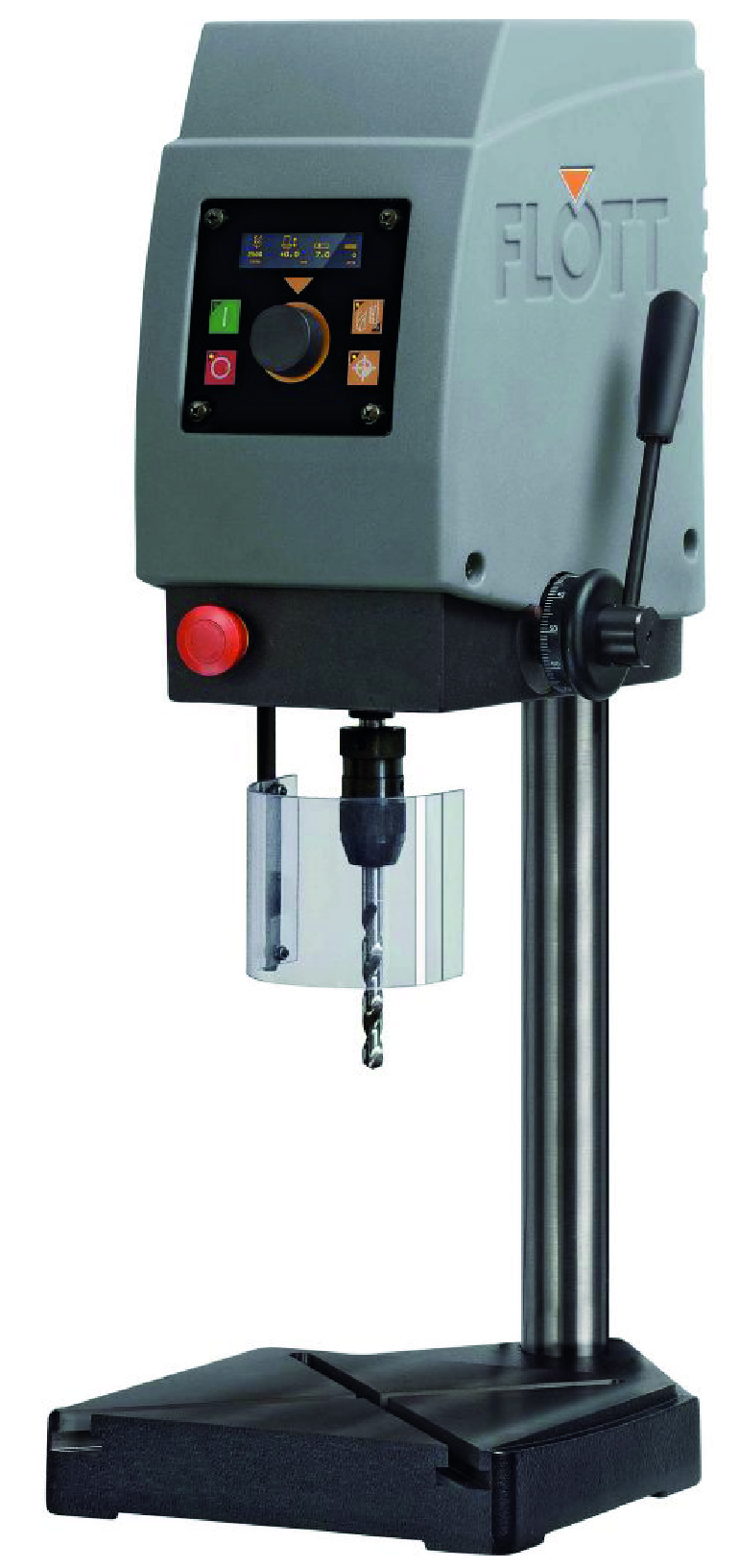

High precision drilling
- Model Turbodrill from Flott
- Drilling 0.5-8mm
- Drill depth 60 mm
- Speed from 100 to 10000 rpm
- Table size 300 x 250 mm
